HELP MANUAL
How to install and configure DD Free Dish to receive transmission on SWAYAMPRABHA channels?Two-step process for configuring and installing DD Free Dish and Settop box, generally available with all TV dealers for less than Rs. 2,000/-, is as follows:
Install DD Free Dish as per the directions given at: https://prasarbharati.gov.in/free-dish-4/
Set following parameters in the Set-top box for SWAYAM PRABHA Channels:
‘DD SWAYAM Prabha’ channels are upgraded from MPEG2 to MPEG4 technology with effect from June 7, 2023.
Now, to receive these channels, MPEG2 set-top box needs to be replaced with MPEG4 compatible set-top box.

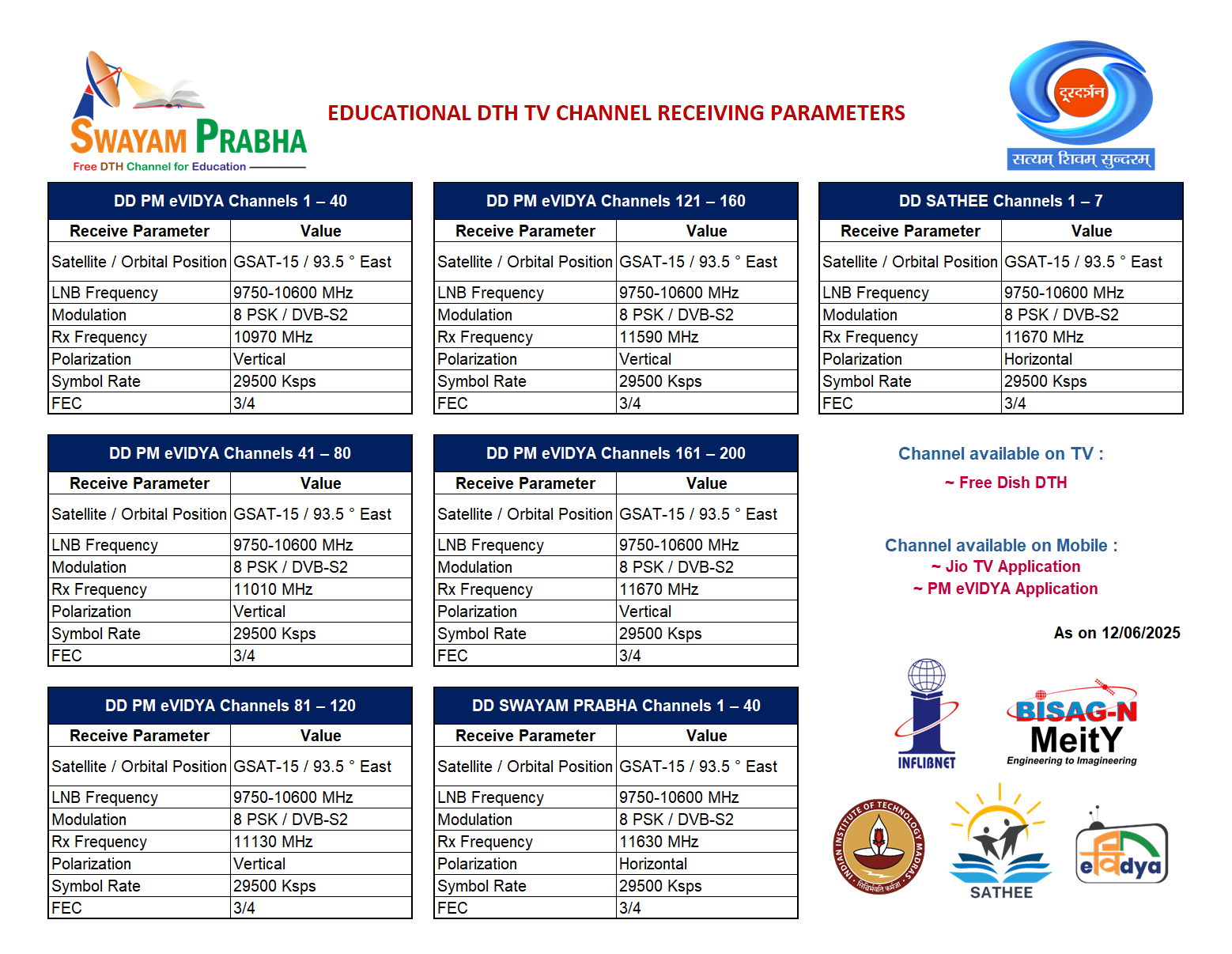

Accordingly, the receiving parameters for ‘DD SWAYAM Prabha’ channels are changed as given below:
| Receive Parameter | Value |
|---|---|
| Satellite / Orbital Position | GSAT-15 / 93.5° East |
| Modulation | 8 PSK / DVB-S2 |
| Rx Frequency | 11630 MHz |
| Polarization | Horizontal |
| Symbol Rate | 29500 KSPS |
| FEC | 3/4 |
The receiving parameters for ‘SATHEE’ channels are as given below:
| Receive Parameter | Value |
|---|---|
| Satellite / Orbital Position | GSAT-15 / 93.5° East |
| Modulation | 8 PSK / DVB-S2 |
| Rx Frequency | 11670 MHz |
| Polarization | Horizontal |
| Symbol Rate | 29500 KSPS |
| FEC | 3/4 |
Channels available on TV : Free Dish DTH and Dish TV
Channels available on Mobile : JIO TV Application
